Spider-80X Machine Condition Monitoring System
Spider-80X Machine Condition Monitoring System, configured in a 64 channel chassis above. The Spider-80X is scalable up to 128 channels.

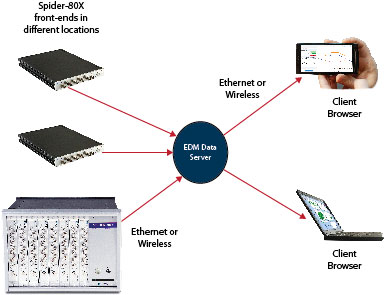

Figure 1: Remote machine condition monitoring system configuration using LAN.

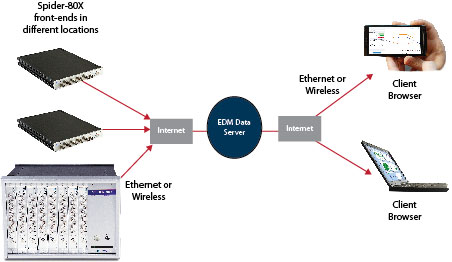

Figure 2: Remote machine condition monitoring system configuration using internet.
Spider-80X Machine Condition Monitoring System
The compact Spider-80X is designed for machine condition monitoring. Each front-end features eight analog input channels and two channels that may be software selected as tachometer inputs for the analysis of rotating machinery. The Spider-80X inputs provides absolute/differential and AC/DC/IEPE coupling choices; charge mode is an available option. The Spider-80X provides the same IEEE 1588 time sync Ethernet connectivity available on all Crystal Instruments Spider products and 4 GB flash memory for data and program storage. Multiple Spider-80X front-ends may be linked together using the (eight-into-one) Spider-HUB module and storage can be increased to 250 GB by adding a Spider-NAS mass storage module. Up to 128 channels can be configured in a Spider-80X system.
Cloud Based Remote Monitoring
EDM Cloud combined with the Spider-80X system is the ideal choice for machine condition monitoring. With EDM Cloud, the test and the test engineer can literally be oceans apart. Any of the usual EDM tests can be incorporated into a test suite, fully developed in the comfort of the office, and then sent to the Spider front-ends far away. Check measurements against a variety of criteria; tests run locally, on the Spiders. Results are available across the world, in real-time. EDM Cloud is server-based software designed to take vibration and other measurements remotely using Spider front-ends. Applications include machine conditioning monitoring, wind turbine vibration and status monitoring, bridge and railway vibration monitoring, tunnel sound monitoring and more. By opening a web browser on a tablet PC, iPad, PC or a smart phone, the user can access real time or historical data instantly.
Software Features
Product Specifications:
Inputs: 8 BNC connectors per front-end, front-ends are networked to form up to 128 inputs, voltage or IEPE, single-ended or differential, AC or DC coupling, 160 dBFS dynamic range, 24-bit A/D converters, range ±20 volts, up to 102.4 kHz fs per channel
Outputs: 2 BNC connectors per front-end, 100 dB dynamic range, 24-bit A/D converters. ±10 volts
Channel Phase Match: Better than ±1.0 degree up to 20 kHz among all channels
Dimensions: 238.8 x 215.7 x 20 mm, four Spider-80X front-ends fit into one 1U 19 inch rack-mount slot
Weight: 1.3 kg per front-end
Power: Powered from external DC power
Computer Connections: 100Base-T, RJ45 female connector supports connection to PC or network switch
Internal Memory: Flash memory for data storage is 4 GB per unit
Real Time Analysis Functions:Data recording, Math (+,-,*,/), integration ,differentiation, FFT, average, window, auto power spectra, cross-spectra, FRF, coherence, real-time filters, RMS, swept sine, limiting, alarm/abort and many more.
Operation Modes: Connected to computer or stand alone Black Box mode.
