Transient Random Control

Single Axis Shaker Vibration Testing

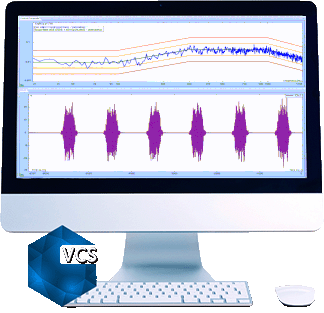

Transient Random Vibration Test Control drives a series of transient pulses to the shaker. The pulse profile is defined by pulse interval and target power spectrum, like that of Random. Applications include simulating gunfire or road transients. Supported by hardware versions 7.x and above with up to 512 input channels.

Transient Random Control

Transient Random Control

Control Parameters

  • Sampling Rate: up to 102.4 kHz
  • Spectral Resolution: 200, 400, 800, 1,600, 3,200 and 6,400. 3,200 for all 8 channels. Resolution higher than 3,200 reduces the maximum channel count.
  • Time Block Size: 512 to 65,536 points
  • Average Number: 1 – 500 (2 – 1000 DOFs)
  • Drive Sigma Clipping: 3 – 10

Non-Acceleration Control in Transient Random

For Transient Random tests, the following options are available:

Control in linear acceleration: This is the most commonly used and set by default. It allows the control in acceleration quantity. The target profile will be set to acceleration.

Control in any non-acceleration unit: This mode gives user options to choose from various industry standards measurement quantities to be used as controlling quantity. The most common used quantities are force, displacement and velocity.

Unique Features in Transient Random Control

Vibration Visualization: The EDM Vibration Visualization feature is available in EDM VCS software all test types, including MIMO VCS. This option provides fast and efficient structural model generation and full 3D visualization of the online vibration pattern on the structure under test.

Multiple instances of EDM VCS can run simultaneously on the same computer. Each instance connects a Spider system to run the vibration controller software. All instances must run different tests. This feature provides a central place to control multiple Spider systems and perform vibration tests separately.

Black Box Mode: Operating Without a PC
A supported front-end can operate in Black Box mode which allows it to perform a test without a connected PC. In this mode, a PC is used only to configure the system before the test and then to download the data after the test is complete.

Multi-shaker control (MSC) is a unique feature offered enables users to view and monitor multiple shaker tests from one PC station. Up to 12 controllers can be accessed simultaneously.

Continuous Data Recording

During vibration control, all measurement input and drive signals can continuously record to a Spider-NAS or the internal storage residing in each front-end. Users can view and analyze data files with Crystal Instruments Post Analyzer. The variable sampling rate can be enabled to simultaneously record slow-change signals together with high speed vibration data.

Spider Vibration Testing Hardware

A Spider system can consist of one or more Spider vibration test controllers. The user constructs the system by combining Spider vibration testing hardware detected on the same LAN. The software validates and displays hardware attributes of each Spider vibration test controller. The following hardware is supported by EDM VCS software for vibration testing, monitoring, and data acquisition.

Related Vibration Control Software Options

Monitoring Through EDM Cloud

All EDM-VCS vibration tests support status checks through EDM Cloud. With EDM Cloud support, users can set up any VCS test to upload live data or run logs for completed tests to a cloud storage space provided by Crystal Instruments, where data is securely stored in the user’s account.

The EDM Cloud website is located at https://cloud.go-ci.com. Users can access EDM Cloud from anywhere in the world to check the status of past and current tests. A secure login flow ensures the status can only be checked by authorized personnel with proper credentials. Multiple logins for accessing the same Cloud account is available.

Purchase System - USA

International Distributors

Download Vibration Testing Brochure

Download Free VCS Simulation Software

Vibration Utilities App

Crystal Instruments in partnership with our sister shaker company Sentek Dynamics provides users with the Vibration Utilities mobile app on iOS and Android. This app provides calculation features for sizing your vibration profile (Random, Sine or Shock) and searches through our catalogue of shakers and controllers for the best fit.
